Managing Equipment

This guide covers everyday equipment management tasks: adding new items, editing fields, deleting equipment, and working with multiple items at once. For a full description of every field and feature, see the Equipment reference.

(EQUIPMENT tab)

Adding Equipment

To add a new equipment item to your project:

1. Go to the EQUIPMENT tab in the orange header bar.

2. Click the + Add button in the toolbar

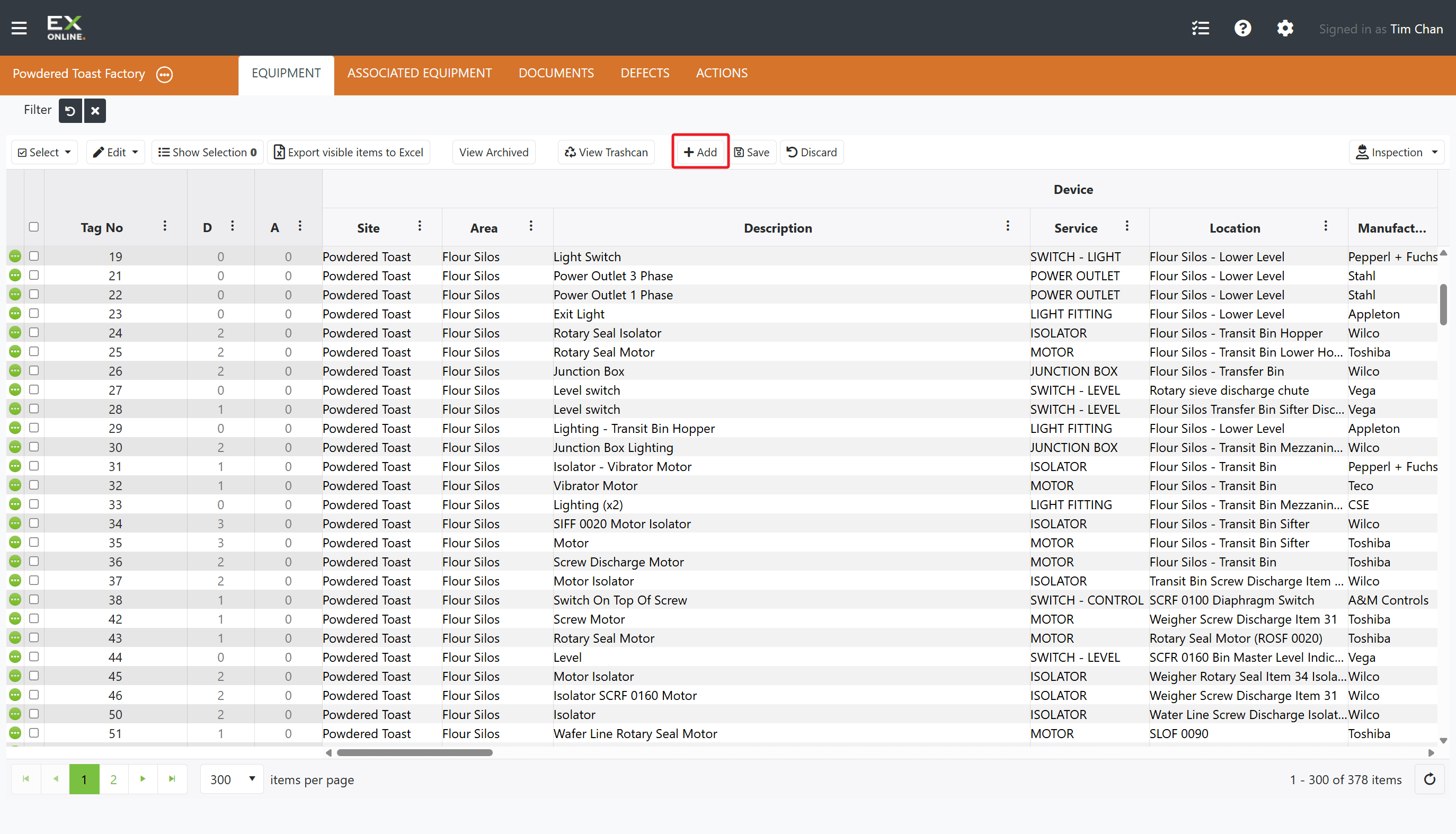

   (Equipment toolbar — + Add button)

3. A new empty row appears at the top of the grid

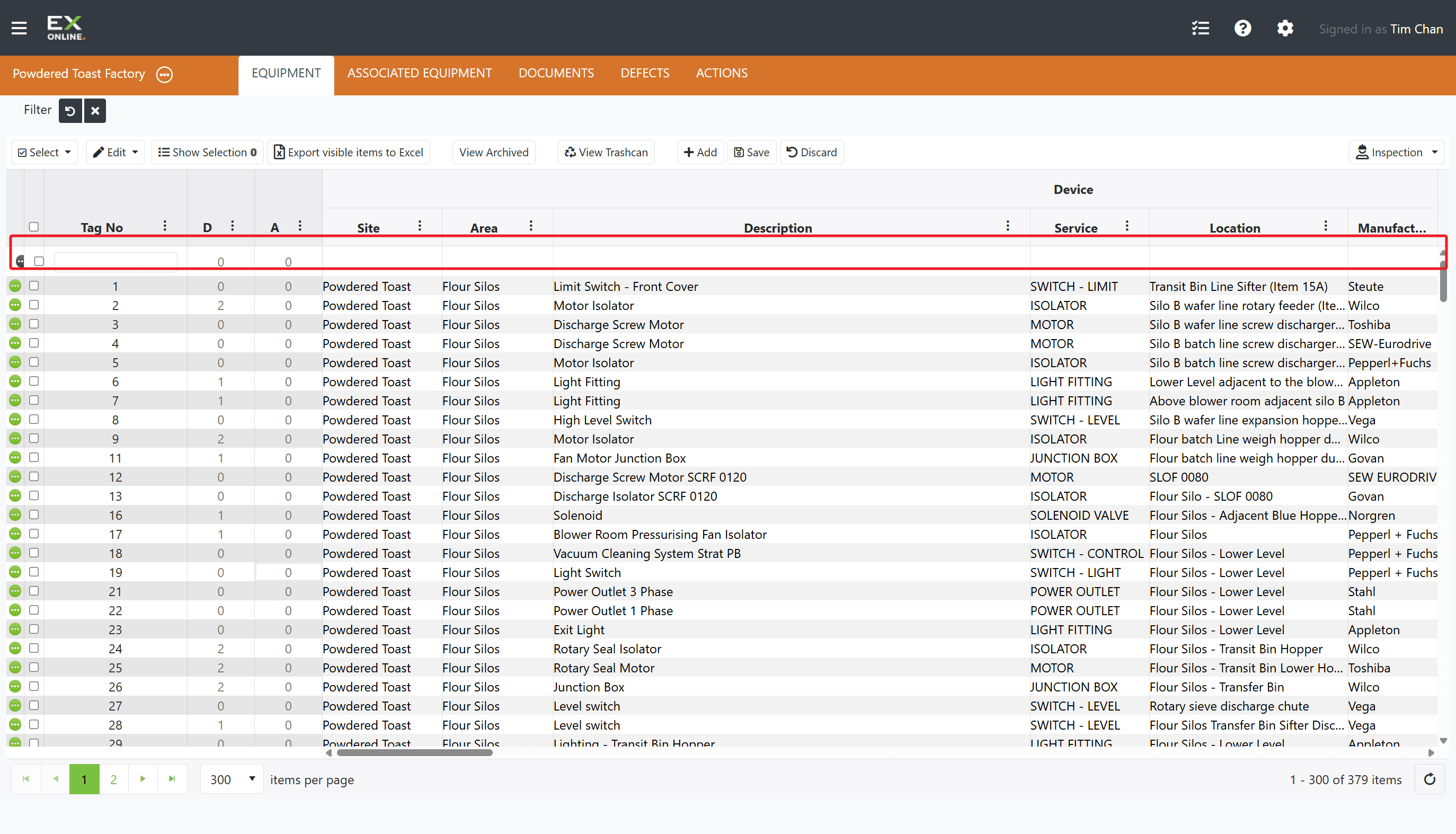

   (New empty row)

4. Enter a unique Tag No (e.g., “P-001”, “M-101”).

5. Fill in key fields: Site, Area, Description.

6. Add optional details: Manufacturer, Model, Serial No, Service, Location.

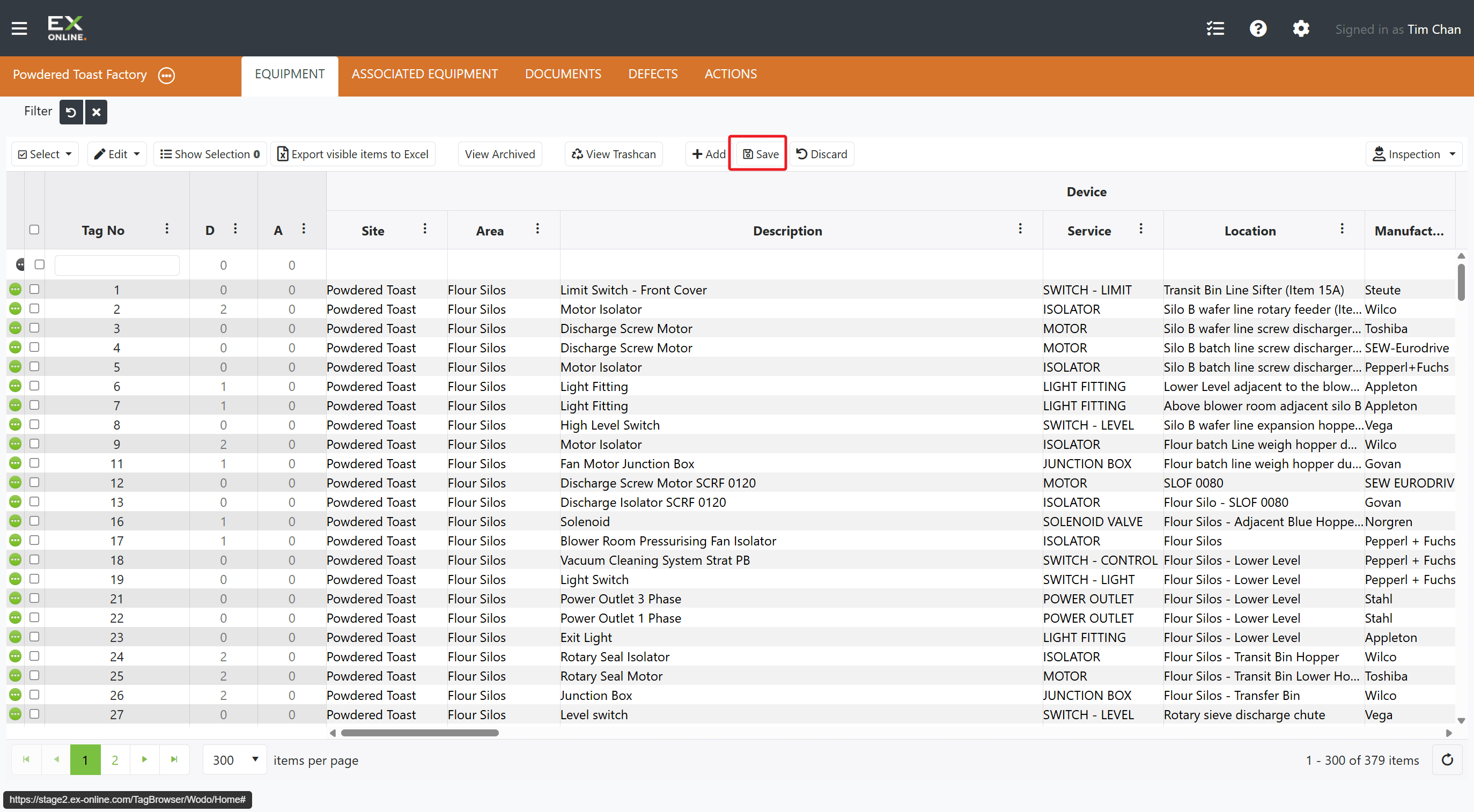

7. Click Save in the toolbar to commit the new item

   (Save the new item)

Save Before Adding Documents

Save the equipment record before attaching documents. The item must exist in the database before documents can be linked to it.

Finding Equipment

Use the column filters to narrow the grid to the items you need. Click the filter icon next to any column header to filter by that column’s values — for example, filter by Area to see only equipment in a specific location, or by Manufacturer to review a particular brand. Filters can be combined across columns. See Filtering and Sorting Data for step-by-step instructions.

Editing Equipment in the Grid

The quickest way to update a single field is to edit it directly in the grid.

1. Go to the EQUIPMENT tab in the orange header bar.

2. Click on any editable cell in the equipment row.

3. Modify the value

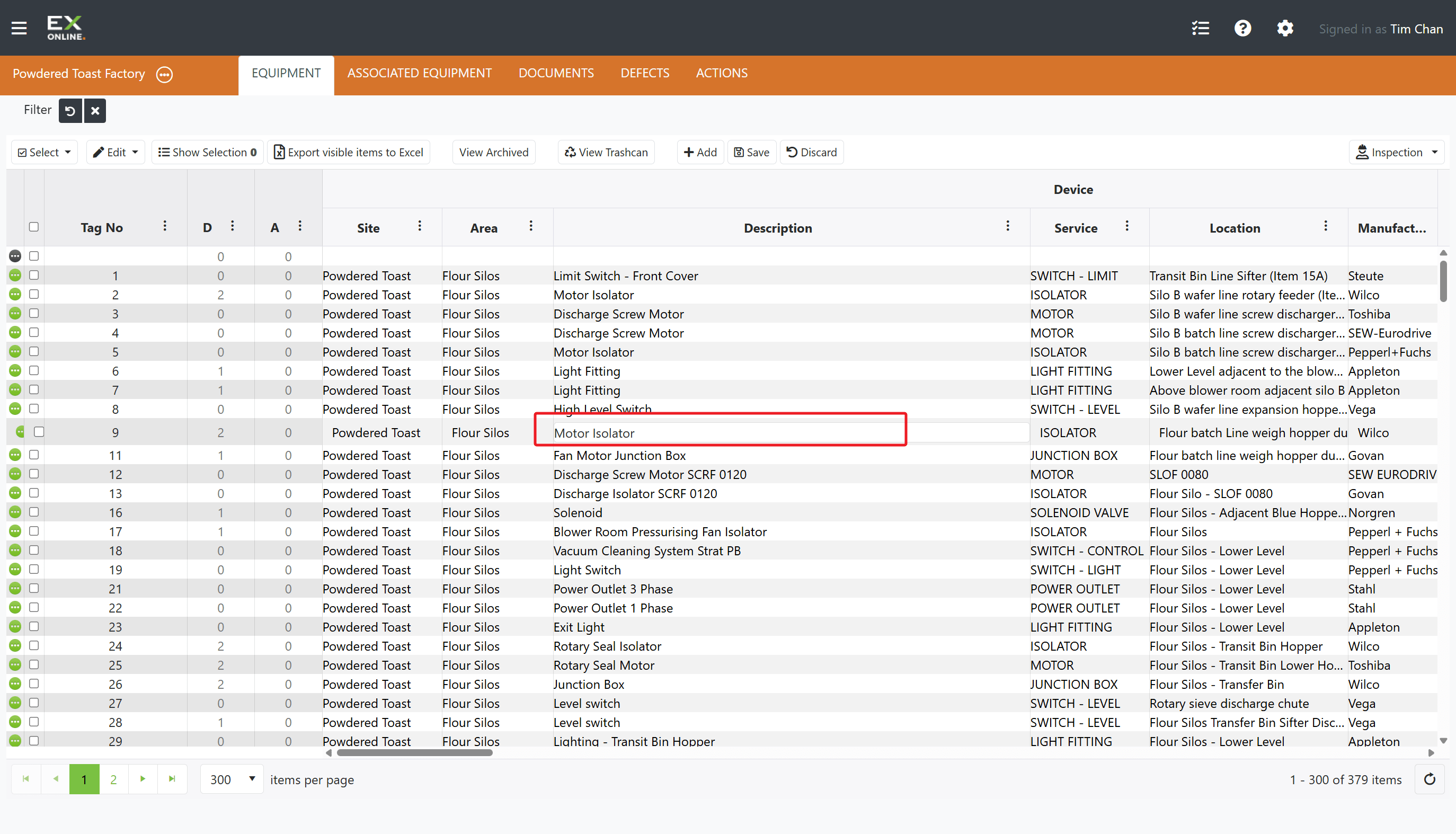

   (Inline grid editing)

4. Click Save in the toolbar to commit, or Discard to cancel.

Editing Equipment in the Equipment Window

The Equipment Window provides access to all fields and tabs for a single item.

1. Go to the EQUIPMENT tab in the orange header bar.

2. Click the green expand icon on the left of any equipment row.

3. The Equipment Window opens showing the Item Details tab

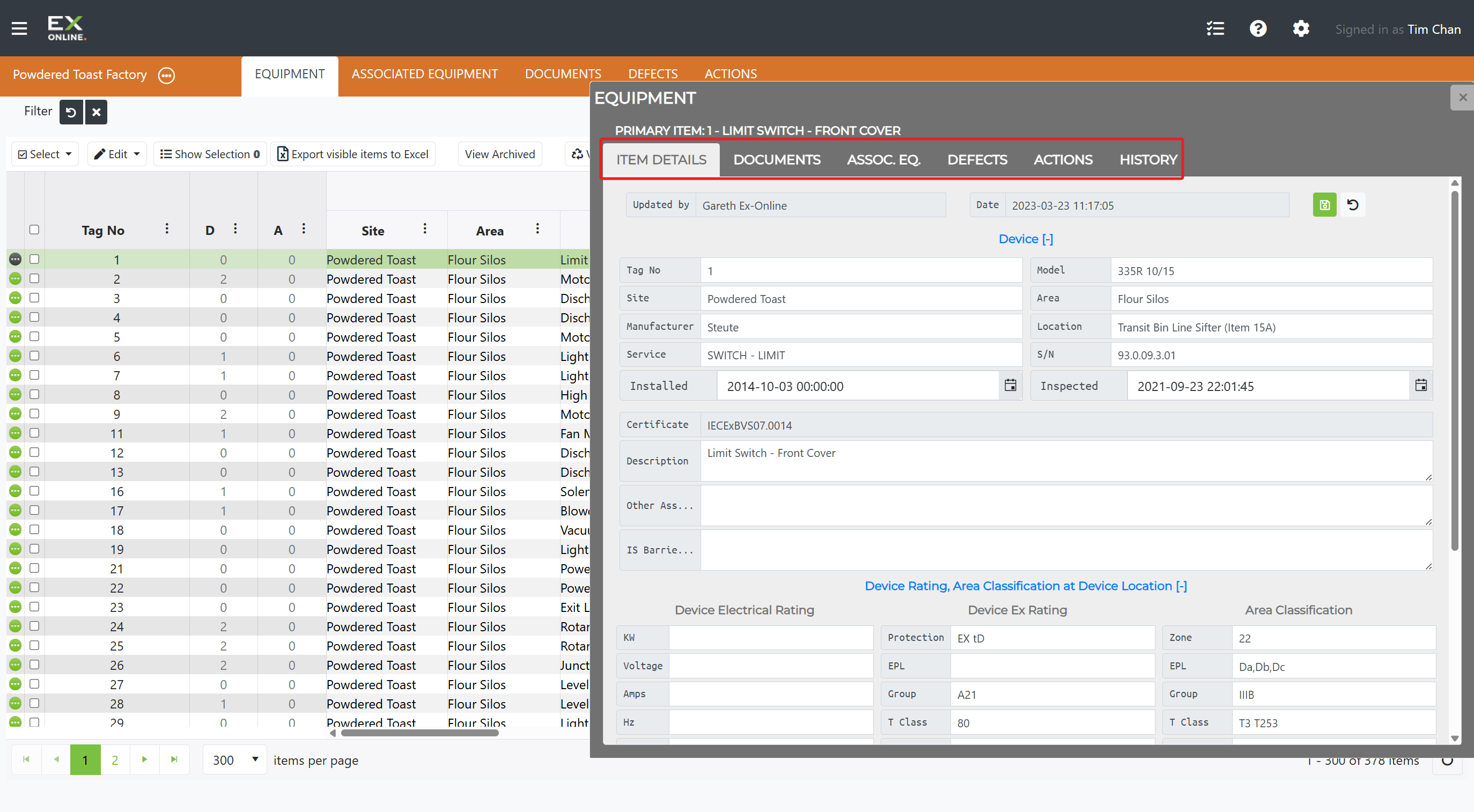

   (Equipment Window — Item Details tab)

Grid Editing

Grid editing is disabled while the Equipment Window is open. Close the Equipment Window to resume editing in the grid.

From here you can:

• Edit any field in the Item Details tab, then click Save
• Switch to Documents to manage linked files
• View Defects and Actions for this item
• Check Assoc. Eq. for linked associated equipment
• Review the History tab for all changes made to this item

Group Editing

When you need to apply the same change to several items at once, select them first, then use the Edit dropdown in the toolbar.

1. Go to the EQUIPMENT tab in the orange header bar.
2. Use the Select dropdown to select all items, or check the boxes next to individual items — use the header checkbox to select all items on the current page.
3. Click Edit in the toolbar and choose an operation (Delete, Search / Replace, Archive, Add Defect, etc.)

Not every Edit menu option is available for every selection. Some operations (such as Undo) only apply when a single item is selected.

Selections Are Sticky

Items remain selected even when they fall outside the current filter or page. Show Selection reveals your selected items but does not override active filters — hidden items stay selected. Use Select > Clear Selection before starting a new bulk operation.

Group Edit in the Equipment Window

If you open the Equipment Window while multiple items are selected, the window enters Group Edit mode — field changes you make and save apply to all selected items at once.

(Equipment Window — Group Edit mode)

Primary Item vs Selection

The Primary Item (the row you clicked to open the window) is only affected if it’s part of your selection. Always verify the Primary Item shown at the top of the Equipment Window before saving. See Primary Item and Group Edit Mode in the reference for details.

Search / Replace

To find and replace a value across multiple items at once:

1. Go to the EQUIPMENT tab in the orange header bar.

2. Select the items you want to update using the checkboxes.

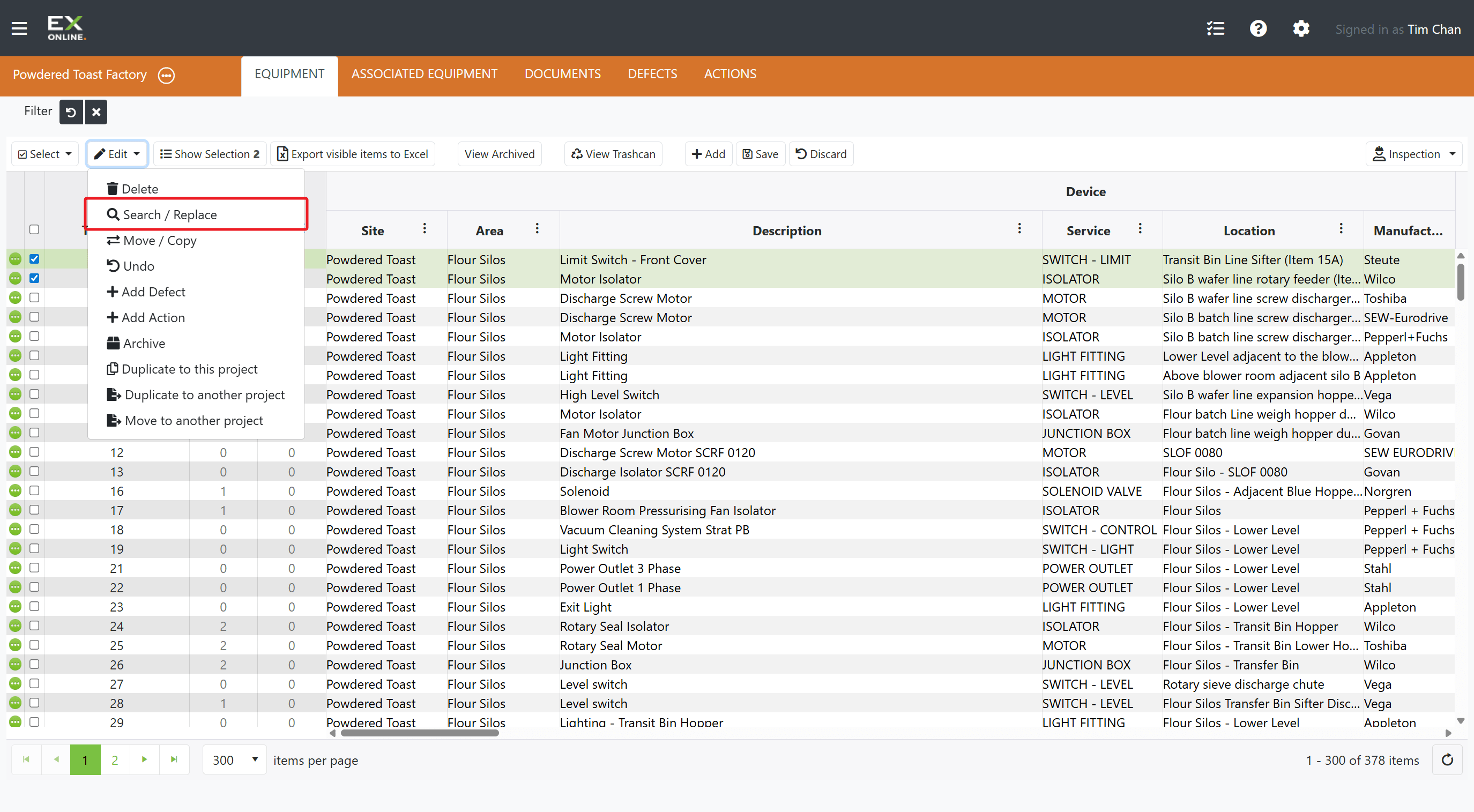

3. Click Edit in the toolbar > Search / Replace

   (Edit menu — Search / Replace)

4. The Search / Replace dialog opens — choose the field to search in, enter the value to find and the replacement value

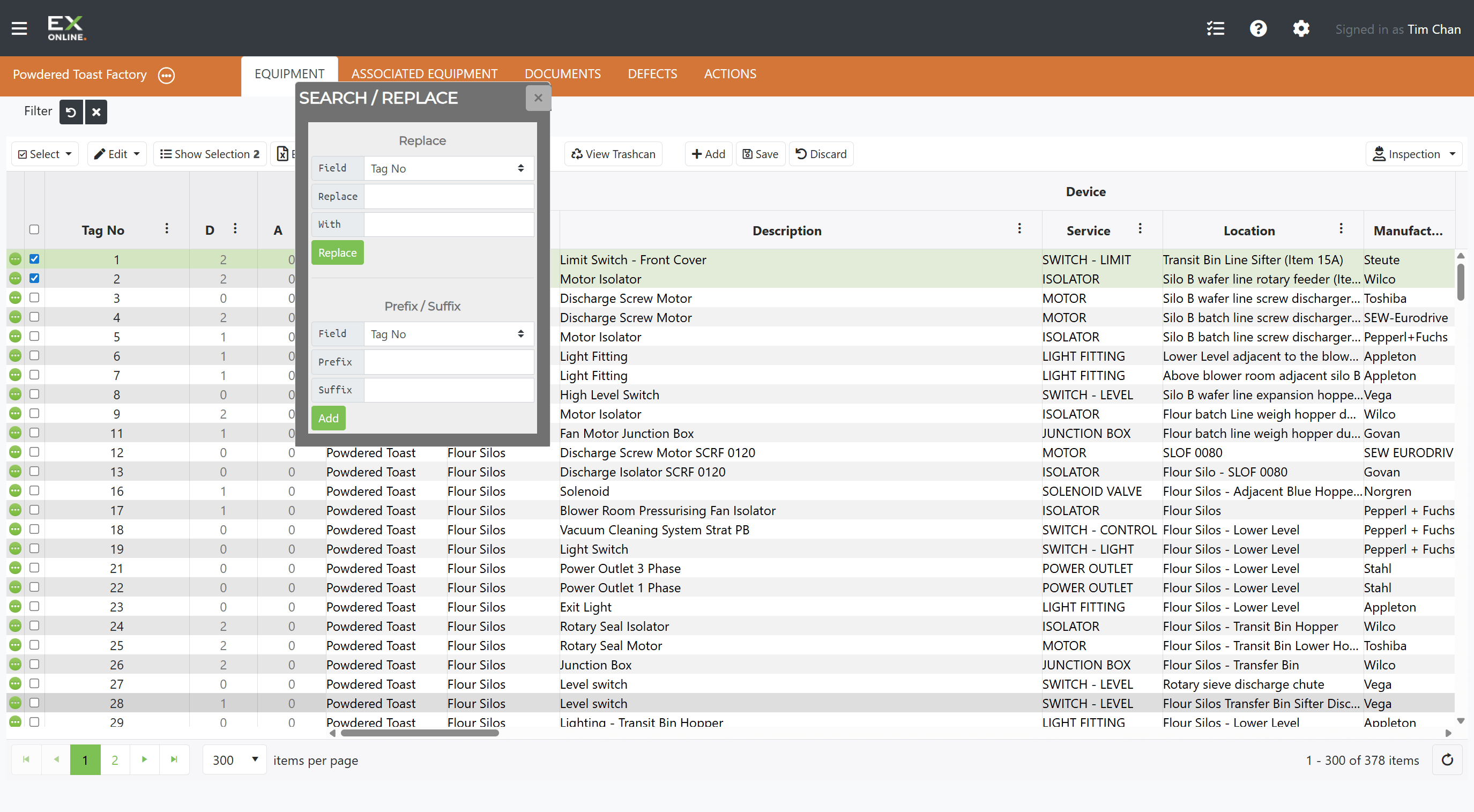

   (Search / Replace dialog)

5. Click Replace to apply.

This is useful for correcting a mistyped Area name, updating a Manufacturer after a rebrand, or standardising Location values across a batch of items.

Duplicating and Moving Equipment

To copy or move existing equipment:

1. Go to the EQUIPMENT tab in the orange header bar.

2. Select the items you want to duplicate using the checkboxes.

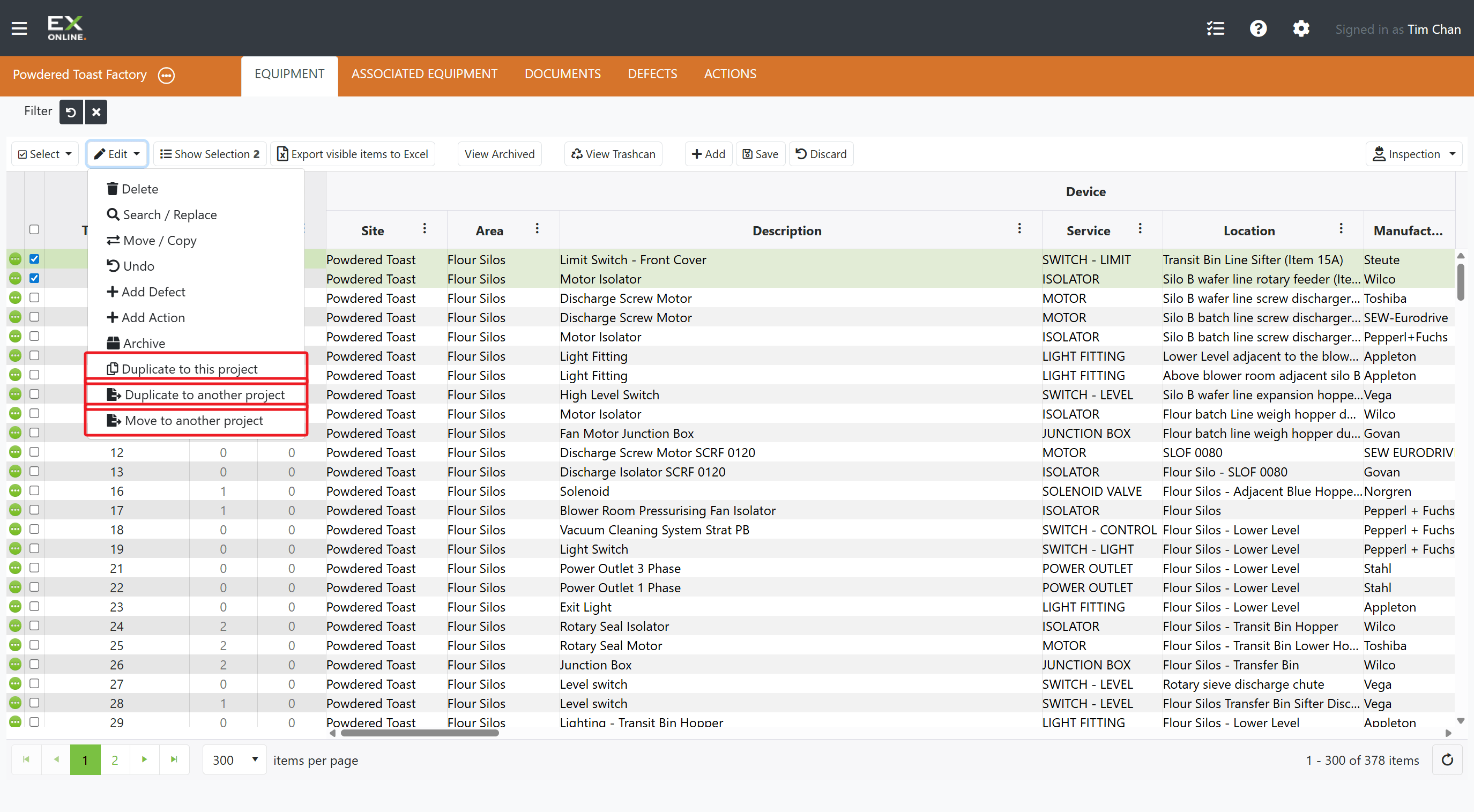

3. Click Edit in the toolbar to open the dropdown menu

   (Edit menu — Duplicate and Move options)

4. Choose Duplicate to this project to copy items within the same project, or Duplicate to another project to copy them elsewhere.

Duplicated items can be edited independently of the originals.

To move items instead of copying, choose Move to another project from the same Edit menu. The items are transferred out of the current project entirely.

Undoing a Change

If you need to revert a field to its previous value:

1. Go to the EQUIPMENT tab in the orange header bar.

2. Find the equipment item you want to revert.

3. Click the green expand icon on the left of the equipment row to open the Equipment Window.

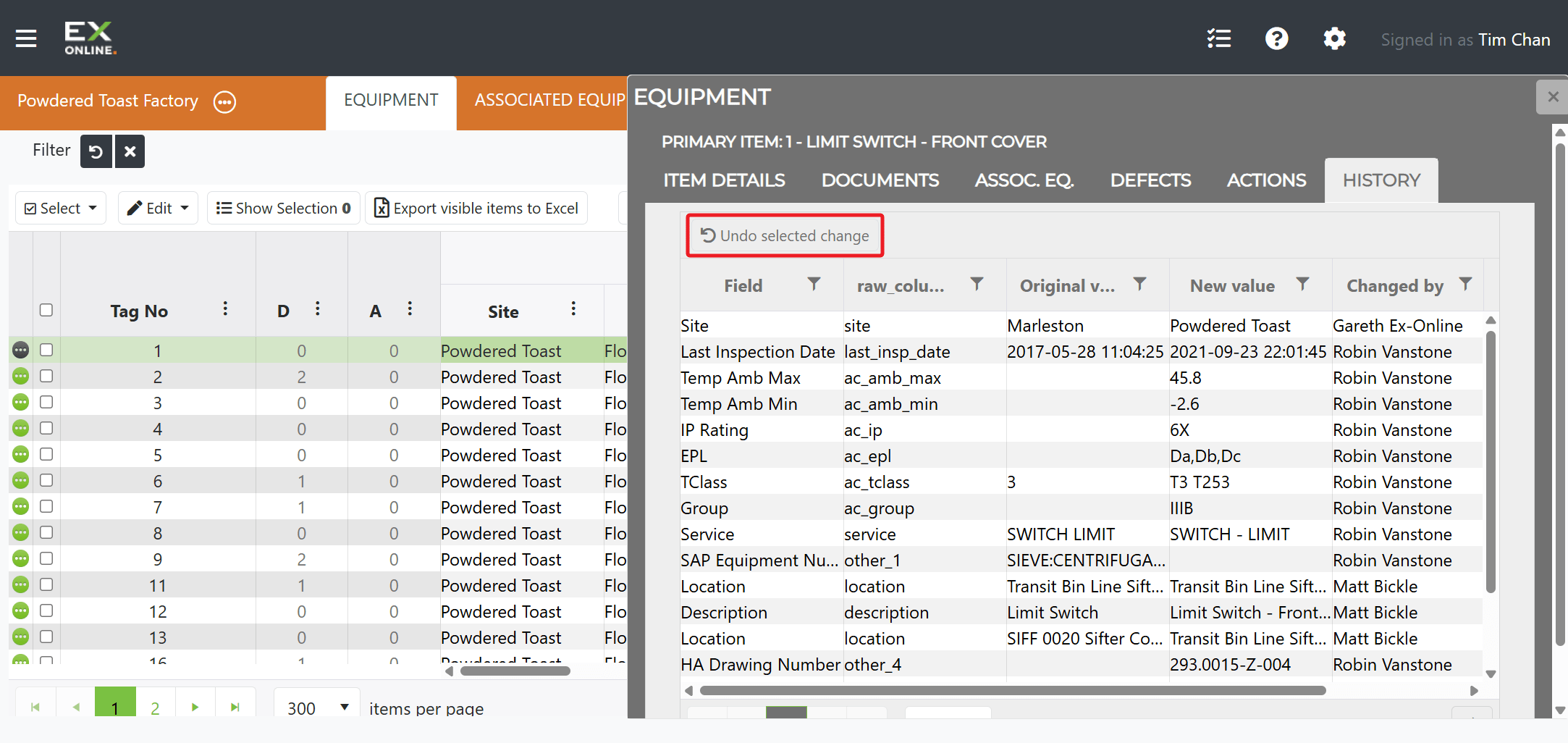

4. Switch to the HISTORY tab in the grey Equipment Window header.

5. Select the change you want to undo.

6. Click Undo Selected Change

   (Equipment Window — History tab)

A new history entry is recorded for the revert.

Undo Limitations

Defects added through a workpack upload cannot be undone from the History tab and must be resolved manually through the DEFECTS tab.

Archiving Equipment

To move equipment out of the active grid without deleting it:

1. Go to the EQUIPMENT tab in the orange header bar.

2. Select the items to archive using the checkboxes.

3. Click Edit in the toolbar > Archive

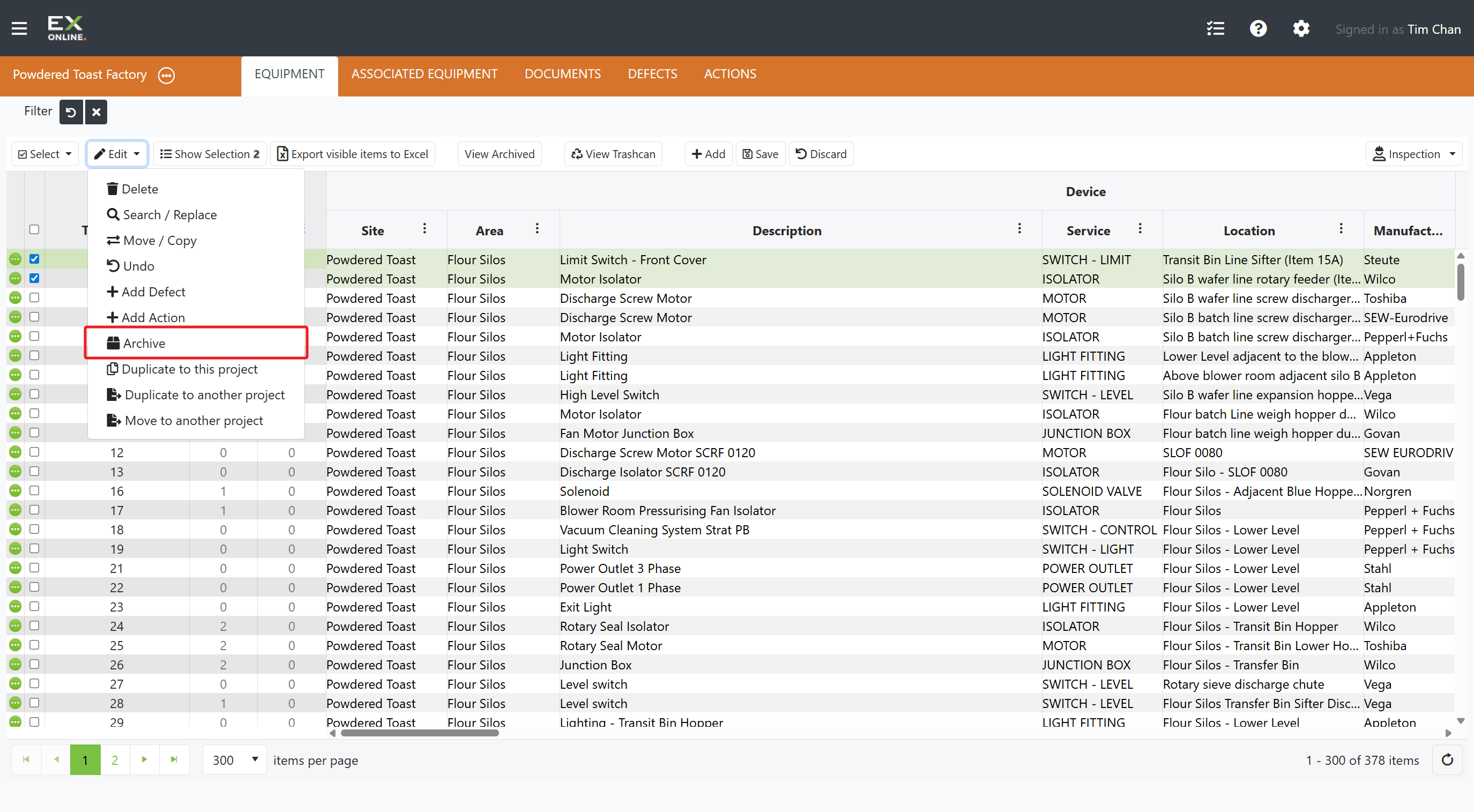

   (Edit menu — Archive)

Archived items are hidden from the default view. Click View Archived in the toolbar to see them and restore items if needed.

Archive vs Delete

Archiving is reversible at any time. Deleting sends items to the Trashcan, where they can be recovered, but archiving is the safer choice for equipment you may need again.

Deleting Equipment

To remove equipment from your project:

1. Go to the EQUIPMENT tab in the orange header bar.

2. Select the items you want to delete using the checkboxes.

3. Click Edit in the toolbar to open the dropdown menu

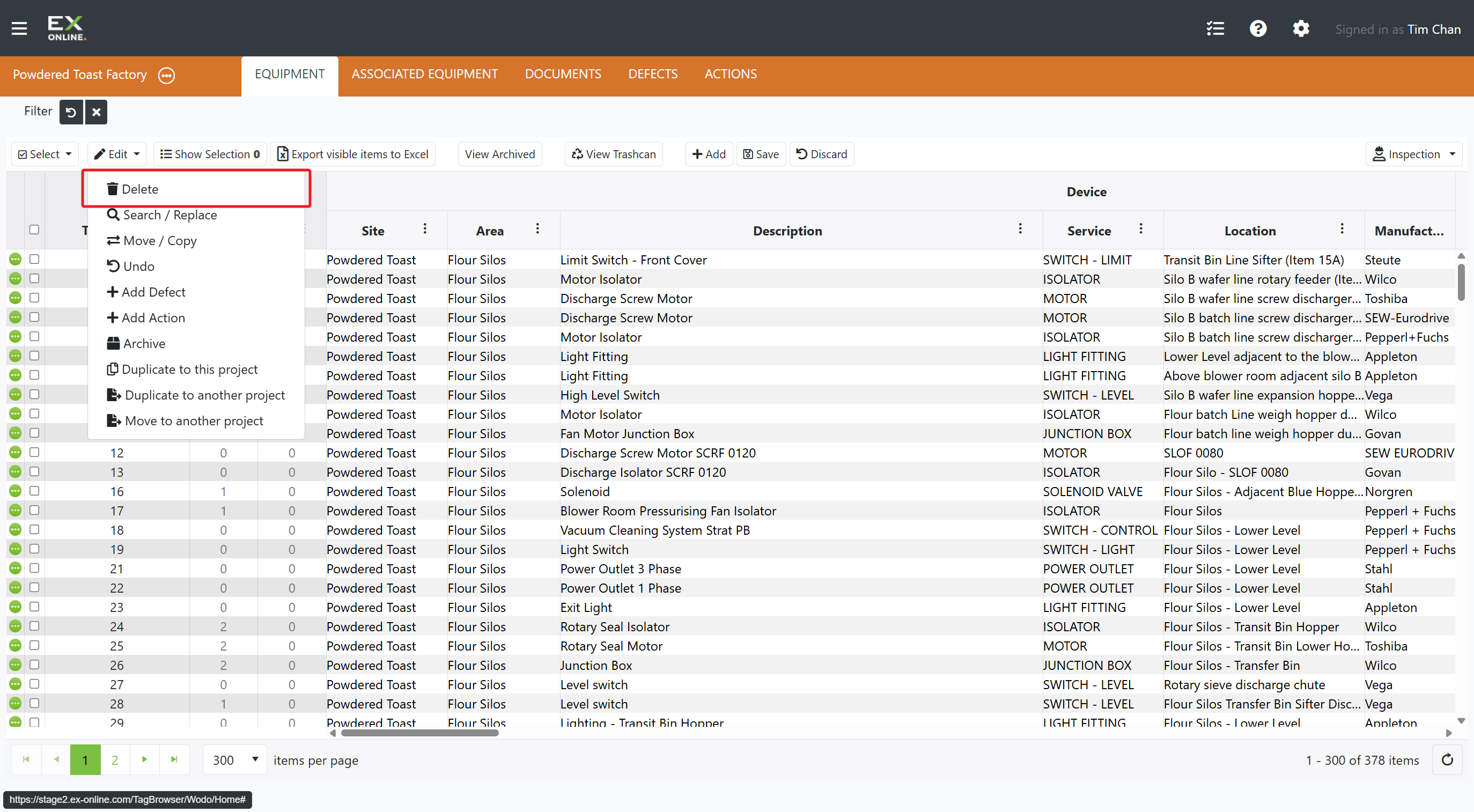

   (Edit dropdown)

4. Click Delete.

5. Confirm the deletion.

Back Up First

Deleted equipment can be recovered from the View Trashcan button in the toolbar, but it’s safer to create a project backup before bulk deletions.

Troubleshooting

Issue	Solution
Can’t edit a cell	Check that the cell is editable — some fields are read-only. Close the Equipment Window if it’s open
Changes not saving	Click Save in the toolbar to commit your changes
Equipment Window won’t open	Click the green expand icon on the left of the row
Group Edit applied to wrong items	Verify your selection before saving

Related Topics

• Equipment Reference — Full field descriptions, toolbar options, and edit modes
• Equipment Window Reference — Tabs, primary items, and edit modes
